| 전압: | 380V | 치수: | 1400*820*1100 mm |
|---|---|---|---|
| 생산 능력: | 130M/분 | 작동 너비: | 460mm |
| 무게: | 210kg | 전력 소비: | 최대 6kW |
| 레이저 모델: | K 시리즈 CO2 펄스 레이저 | 파장: | 10.6 μm |
| 분기: | ≤2.1 MRAD | 레이저 지름: | 7.2mm |
| 공명 생활: | >20,000시간 | 공명 저장 시간: | 3년 미만 |
| 펀치 펄스 시간: | 5 ~ 60μs | 홀의 수: | 0-99 구멍 |
| 공기 압축기 소비: | 4.5m3/h | ||
| 강조하다: | ABB PLC laser perforation machine,high-speed cigarette production machine,wide-width laser perforation equipment |
||
| Attribute | Value |
|---|---|
| Type | Other |
| Computerized | Yes |
| Voltage | 380V |
| Dimensions (L×W×H) | 1400×820×1100 mm |
| Warranty | 1 Year |
| Production Capacity | 130 m/min |
| Working Width | 460mm |
| Weight | 210 KG |
| Power Consumption | Up to 6kW |
| PLC Brand | ABB |
| Laser Model | K series CO2 pulsed laser |
| Wave Length | 10.6 μm |
| Divergence | ≤2.1 mrad |
| Laser Diameter | 7.2 mm |
| Resonant Life | >20,000 hours |
| Punch Pulse Time | 5 ~ 60μs |
| Number of Holes | 0-99 holes |
| Air Compressor Consumption | 4.5m³/h |
The tobacco market increasingly demands higher cigarette quality to meet various testing standards, particularly for ventilation rate measurements in tipping cigarettes.

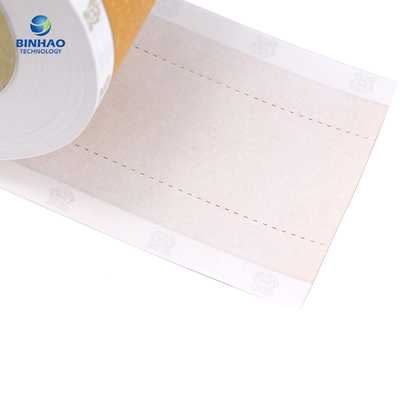

Our advanced laser perforation equipment utilizes full roll coating roller coating method with ordinary cigarette tipping paper and filter rod forming paper. The online laser drilling system reduces impact on cigarette ventilation rates, improves stability, and enhances detection indexes while providing timely control and reducing production costs.
| Drilling Method | Standard Deviation (SD) | Coefficient of Variation (CV%) |
|---|---|---|
| Online Perforation Machine | 0.8-1.5 | 11-15% |
| Tipping Paper Punching Machine | 2.0-2.5 | 15-25% |
We specialize in manufacturing and supplying spare parts for tobacco machinery, along with providing premium technical services to the tobacco industry. Our team stays current with industry trends to deliver cutting-edge solutions tailored to our customers' specific requirements.
Our product range includes spare parts for cigarette making, packing machines, and filter making machines. We also offer customization services based on client drawings or samples, with all products meticulously crafted to meet tobacco industry standards.
