MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

큰 이미지 : MC84R Rotary Cutting Machine 380V PLC Control for Tea Vegetables

제품 상세 정보:

원래 장소:	광동, 중국
브랜드 이름:	Osay

결제 및 배송 조건:

최소 주문 수량:	1
가격:	US$140,000

접촉

상세 제품 설명

차원:	188111162160	힘:	9.15W
전압:	380V±38V	무게:	4000kg
환경 온도:	10-40℃	상대 습도:	≤80%
고도:	≤2000m	제어 모드:	서보 드라이브+PLC+터치 스크린
절단 너비:	0.5-1.5mm	재료 스태킹 용량:	120kg/m³
정격 용량:	3000 킬로그램 / Ｈ	나이프 도어 높이:	75mm
나이프 도어 너비:	400mm	블레이드 수:	8
커터헤드 속도:	50-300rpm	블레이드 수명:	98 시간
강조하다:	380V rotary cutting machine , PLC control tea cutter , vegetable cutting machine for tea

MC84R Rotary Cutting Machine for Vegetables Tea with Auto Sharpening System PLC Control

Product Attributes

Attribute	Value
Application	Vegetables, tea or similar materials
Warranty	1 Year
Dimension (lwh)	188111162160
Power (w)	9.15
Voltage	380V±38V
Weight (kg)	4000
Video outgoing-inspection	Provided
Machinery test report	Provided
Core components	PLC
Environmental temperature	10-40 ℃
Relative humidity	not exceeding 80%
Altitude	not exceeding 2000m
Incoming materials	tea/vegetables/herbs
Control mode	servo drive+PLC+touch screen

Product Description

The MC84R rotary cutting machine is a specialized machine developed independently by our company for cutting vegetables, tea leaves, or similar materials. The MC84R rotary cutting machine consists of a body, feeding belt, compacting belt, cutter head, automatic sharpening device, automatic feeding device, and control system.

This machine adopts our company's innovative proprietary technology and automatic control systems such as servo drive, PLC, and touch screen, which can set and operate multiple parameters to meet different production needs.

Key Features

High-Precision Cutting - Sharp rotary blades deliver uniform cuts for tea, herbs, vegetables, and dry materials.
Fully Automated Operation - Equipped with servo drive, PLC, and touchscreen control for easy parameter adjustment.
Auto Blade Maintenance - Integrated sharpening and feeding system extends blade life and reduces downtime.
Multi-Parameter Settings - Adjust cutting thickness, speed, and pressure for different materials.

Technical Specifications

Project	Unit	Parameter
Cutting width	mm	0.5-1.5
Material reference stacking capacity	kg/m³	120
Rated capacity (with a cutting width of 1mm)	kg/h	3000
Knife door height	mm	75
Knife door width	mm	400
Number of blades	Piece	8
Cutterhead speed	rpm	50-300
Blade lifespan	Hr	98

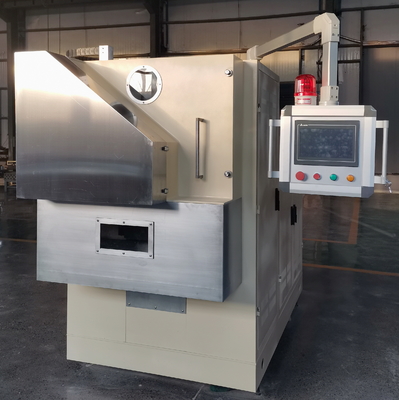

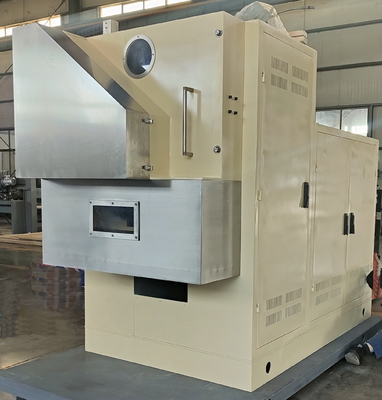

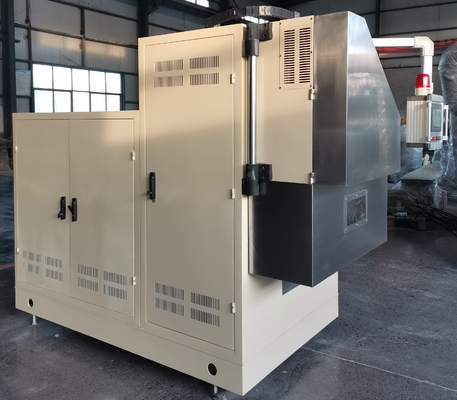

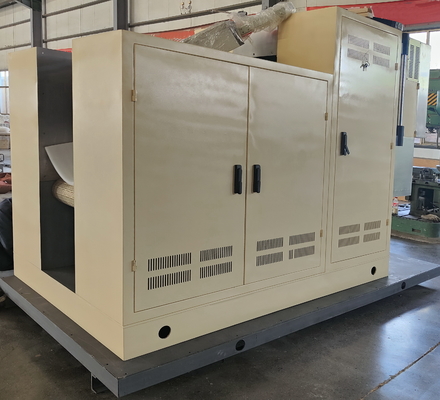

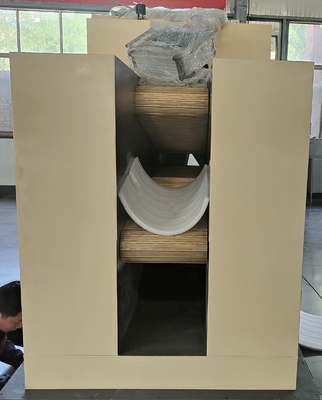

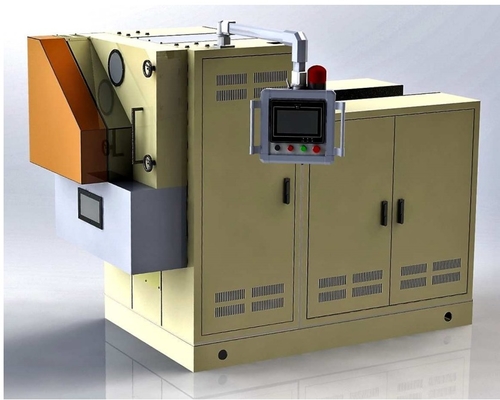

Product Images
